Car Side Mirror Folding Module for Mazda CX-5 Model Automatic Closing Opening Side Mirrors
Functions:
1. Imported wire materials, high temperature resistant, not fever high performance flame-retardant.
2. Automatically fold the car side mirror:
Please press remote lock button when ACC off, then the car side mirror will be folded automatically
3. Automatically open the car side mirror:
When you put the key into ACC ON, then the car side mirror will be opened automatically.
Installation note:
1. The central door lock system is required before installation
2. The green(unlock)and the blue(lock) wires have to be connected with the actuator unlock/lock(+) wires in accordance.
3. The power side mirror system is required to add on this system
About the car Mazda CX-5, there are 2 versions.
One is basic CX-5 low equipped, The driver side window can only be rolled down by one touch of the window switch but can not be rolled up by one touch.

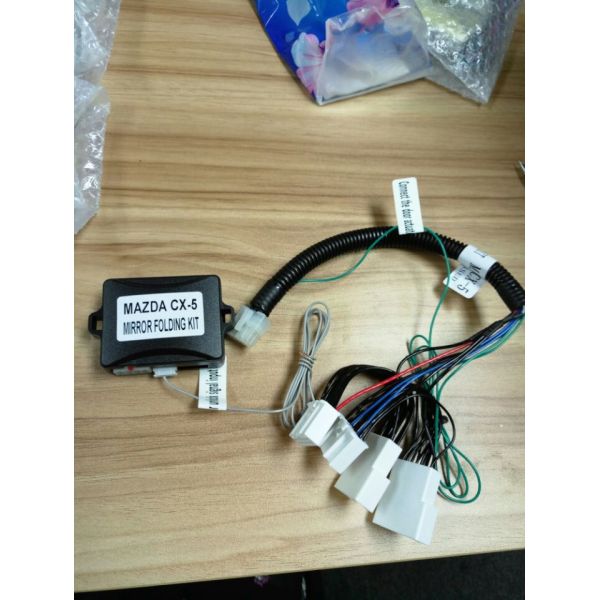

The side mirror folding kit picture as below.
The other version Mazda CX-5 car is Luxury high equipped, The driver side window can be rolled down or up by one touch of the window switch.
The matched side mirror auto folding kit picture is like this.
If you need the side mirror folding kit for other car version, tell us your car name, we will check if we have the side mirror fold system for your car.
Mazda car model list
| MAZDA | B90 | universal | power wire and lock wire |
| X80 | power wire and lock wire |
| B50 | power wire and lock wire |
| B70 | power wire and lock wire |
| M6 | | power wire and lock wire |
| CX-7 | | power wire and lock wire |
| CX-5 | universal | lock wire |
| 15 year CX-5 low equiped | lock wire |
| axela before 2017 | lock wire |
| CX-4 | lock wire |
| ATENZA | universal | power wire and lock wire |
| 15 year CX-5 high equiped | power wire and lock wire |
| axela 2017 | power wire and lock wire |
